Platform electronics

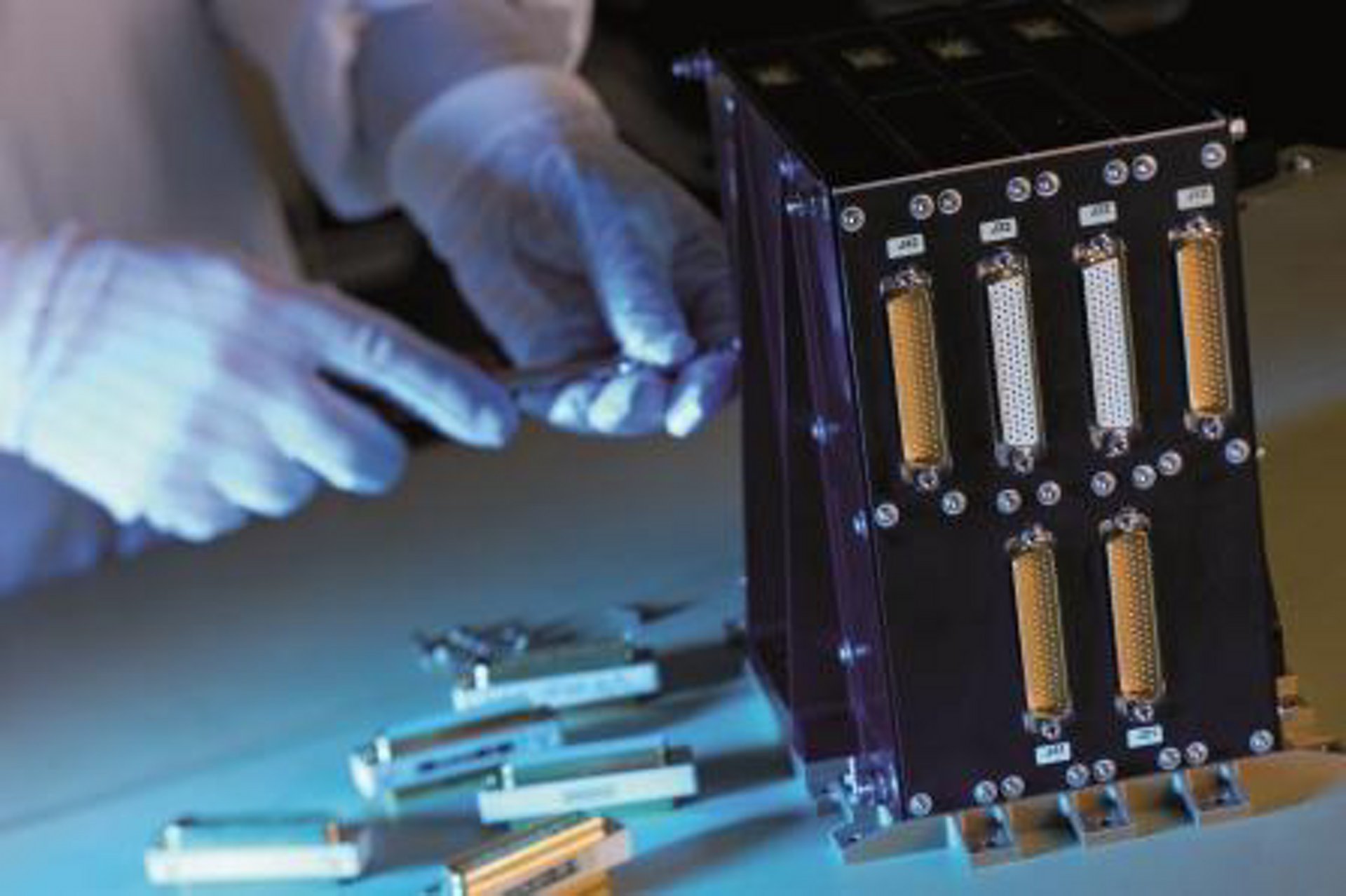

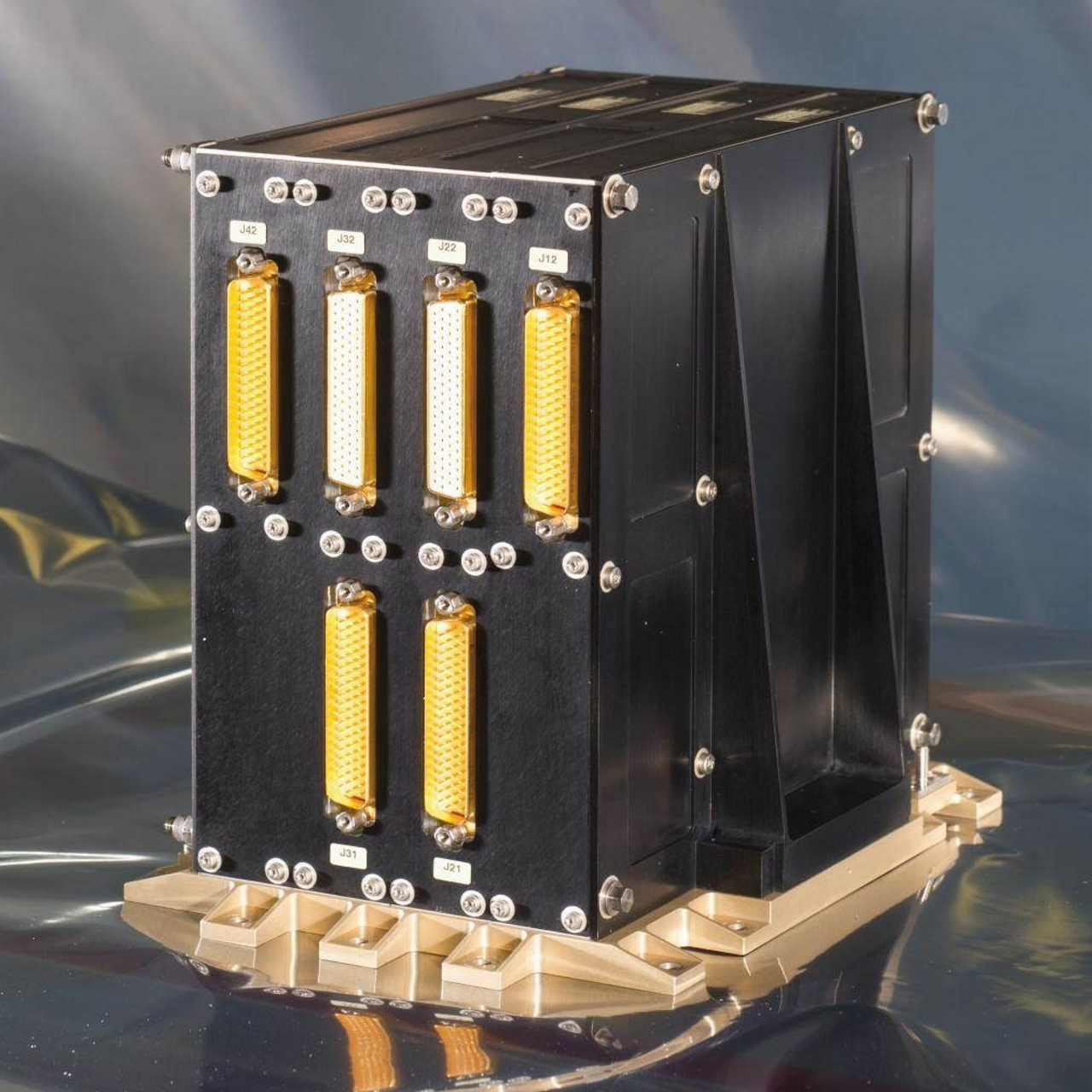

OSCAR
The new-generation platform onboard computer
- Versatile, compact and powerful platform onboard computer for any satellite application
- All the core functions of a platform computer on a single chip: LEON 3-FT core, TM/TC interface, digital I/Os and memory management
- OSCAR unit has been flight proven on the SPOT6 satellite since September 2012, and selected for more than 15 low-Earth orbit satellites
ICDE NG
(Integrated Control and Data Equipment - Next Generation)- ERC32 processor (up to 16 MIPS), high memory capability including in-flight programmable EEPROM
- Modular box architecture, enabling flexibility for I/Os and optional integration of the Airbus DS Mosaic GNSS receiver into the same mechanical housing
- Operational in orbit on multiple satellites since 2007

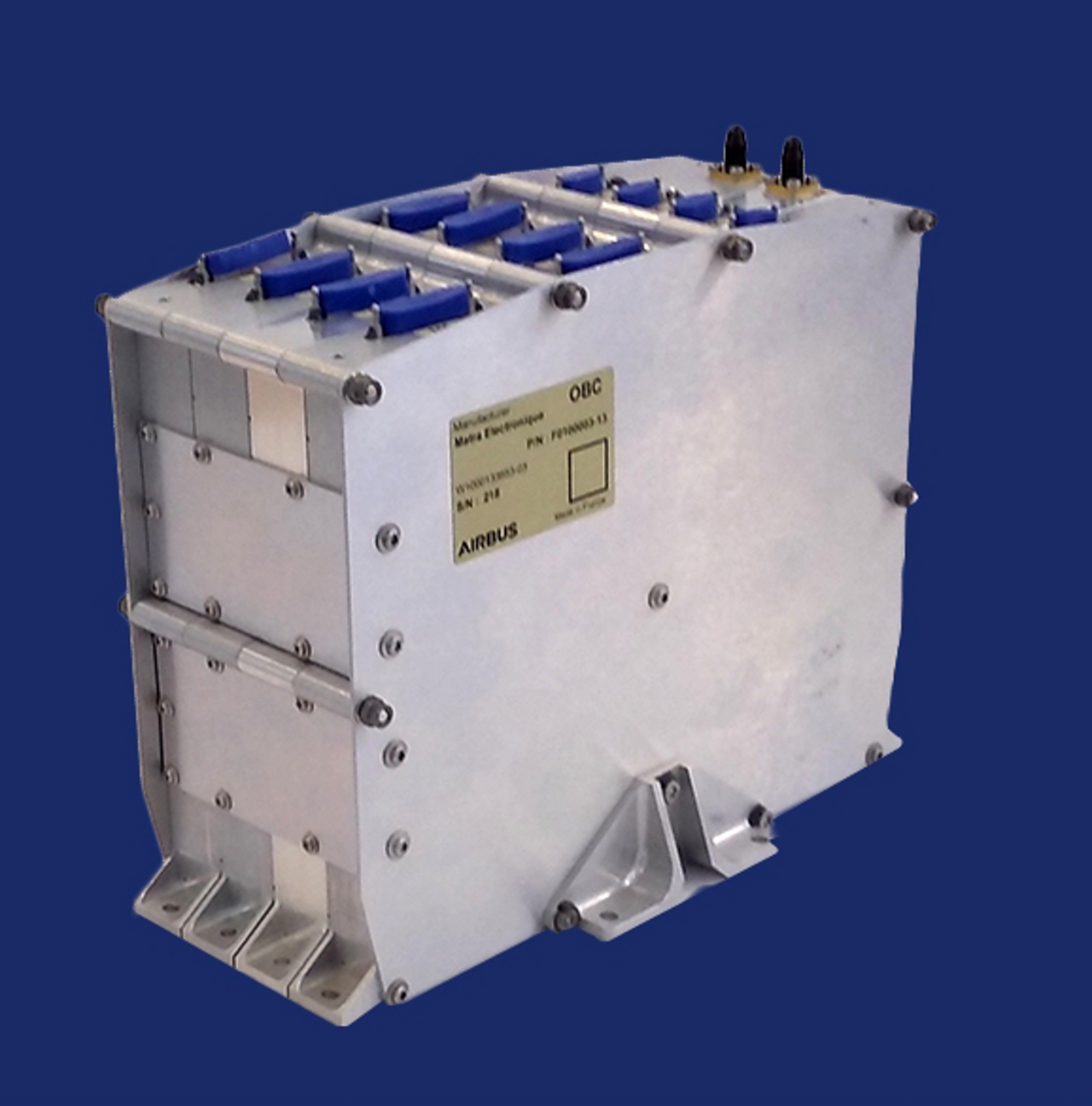

PureLine Amethyst
PureLine Amethyst, a centralized avionics with onboard computer offering capabilities for TM/TC, GPS receiver, delivery of secondary voltages, interface to AOCS sensors and actuators (STR/SADM/MTQ…), and SW time-and-space partitioning capability.

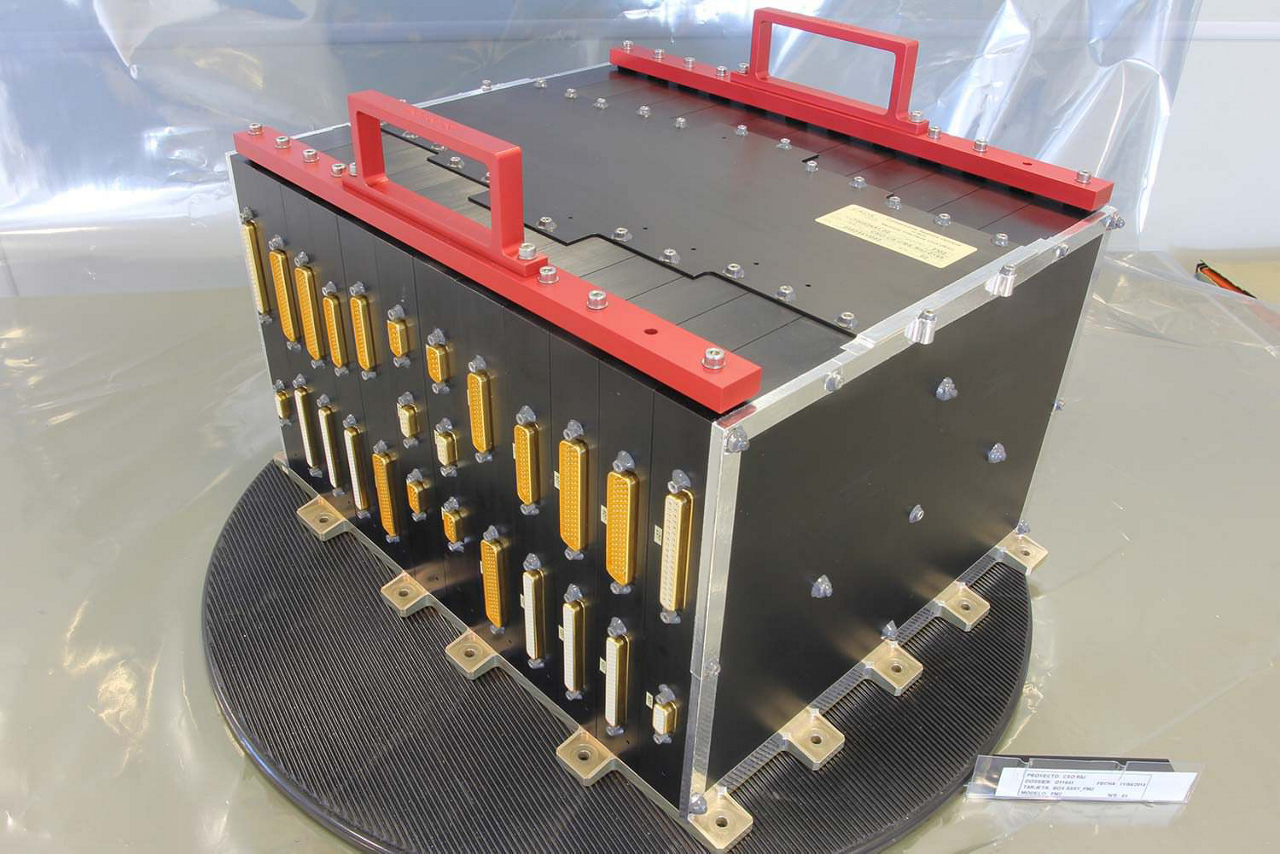

RIU remote interface unit
- Redundant unit in one box
- Modular configuration based on qualified modules
- Flight proven onboard three AS250 platforms
A full range of components to be mounted on customers' equipment:

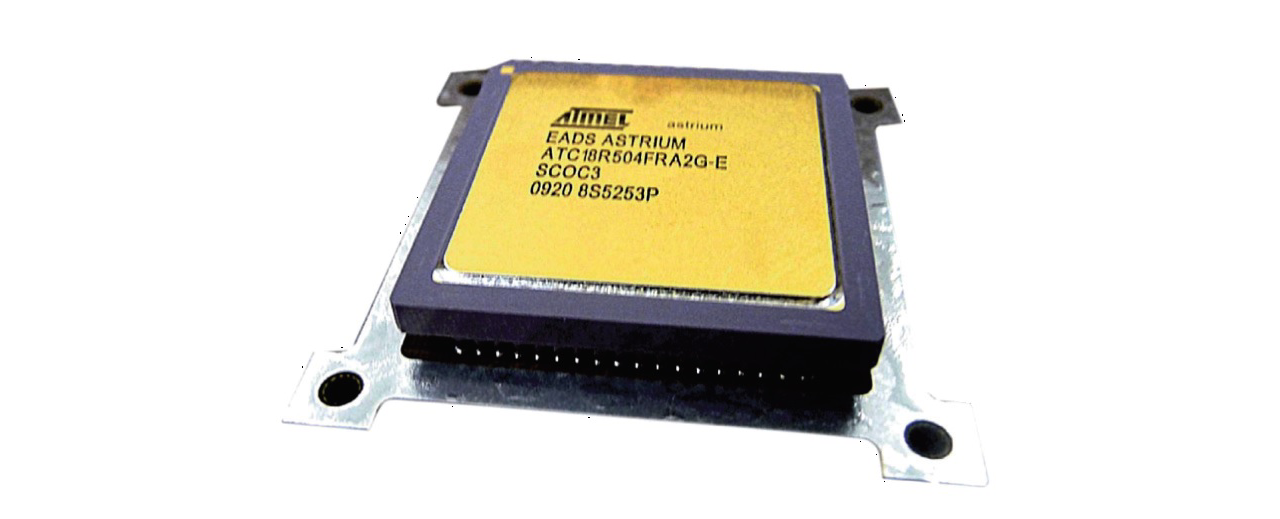

- SCOC3 ASIC offers all the core functions of a platform computer on a single chip based on a LEON 3-FT core: TM/TC interface, digital I/Os and memory management
- MIL-STD-1553B ADT822 transceiver and ASP55 remote terminal RT ASIC 1553B ASIC
- MIL-STD-1553B dual transceiver and remote terminal coupler in hybrid technology
