The H145’s compact footprint, unobstructed cabin and flat floor from nose to tail lend themselves to a full range of applications, accommodating:

●     One or two pilots and up to eight passengers in the standard configuration,

●     One or two pilots and up to 10 passengers in a higher-density configuration.

A wide range of rapidly- and easily-interchangeable optional equipment – such as emergency floats, rescue hoist, searchlight, and cargo hook – is available for the H145. Together with its inherently versatile cabin layout, this multi-purpose rotorcraft is tailored for emergency medical services and law enforcement duties, along with aerial work and passenger transport, including private and business aviation as well as offshore operations.

In 2020, a new innovative version of the H145 entered service equipped with a five-bladed main rotor. This new H145 embodies a major customer expectation: the ability to operate an aircraft with a great useful load. On that point, the H145 is over-performing, and surpassing all the competitors in its class. The latest version of Airbus’ H145 family has 150 kg useful load, leading to the best useful load to maximum takeoff weight ratio for a light twin helicopter.

The new H145’s D-value (the largest overall dimension when rotors are turning) is further reduced, enabling the aircraft to land in even more confined areas. This agility makes the H145 the best choice for challenging EMS and public service missions.

Airbus has set a new standard in smoothness and flight comfort with its bearingless and hingeless five-blade main rotor. The strain on crews has been reduced considerably – improving overall mission efficiency. This innovation builds on the rotor’s simplified maintenance, increasing the availability rate – which is already remarkable on the H145.

The H145 offers exceptional performance thanks its two Safran Arriel 2E powerplants, each managed by a dual full-authority digital engine control (FADEC), along with the helicopter’s upgraded main and tail rotor systems. This guarantees an unprecedented level of performance in all engines operative (AEO) operations and vital power reserves in one engine inoperative (OEI) scenarios.

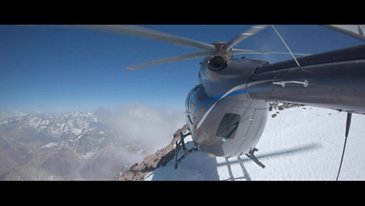

The H145 is the only rotorcraft of its range to take off and land at 20,000 ft – a distinction confirmed in September 2019 with a flight over Aconcagua in the Andes Mountain range (22,840 ft) – where the H145 demonstrated its incomparable power reserve at high altitude.

Twin-engine reliability is complemented by a fully separated fuel supply system, a duplex hydraulic system, dual electrical system and redundant lubrication for the main transmission. In addition, a key safety aspect of the H145 is its inherent crashworthiness with the energy-absorbing fuselage and seats, as well as crash-resistant fuel cells.

The H145 also is equipped with a wireless airborne communication server (wACS), allowing wireless data exchange with a ground station in the most secured way ever developed. The enabled data collection, exchange and analysis that are associated open a limitless world of improvement in the field of maintenance and flight management, further supported by the development of Airbus connected services.

As a further evolution of the BK117 family, the H145 incorporates the latest technologies, such as the advanced cockpit design with the most modern human machine interface (HMI), state-of-the-art Helionix avionics suite and a Fenestron antitorque-device as the tail rotor.

Airbus’ Helionix avionics – connected to the wACS, provides undisputed superiority for in-flight envelope protection, pilot assistance and time savings for data transfer which, along with situational awareness – provide unprecedented levels of flight safety. Meeting the latest international avionics standards, Helionix integrates an innovative alerting and self-monitoring system.

Additionally, the H145 is equipped with an advanced dual-duplex, 4-axis autopilot specifically designed for helicopters. This offers:

●     High flight stability and precision,

●     Unique flight envelope,

●     Over-limit protection,

●     Automated takeoff,

●     Fully-coupled approaches to hover.

The Fenestron technology brings benefits such as improved flight and ground safety to customers, as well as enhanced anti-torque control efficiency, reduced power demand in forward flight, and lower sound and vibration levels.

Additionally, the Fenestron has a redesigned tail gearbox that contributes to lower maintenance costs. It incorporates a duplex tail rotor actuator and dual hydraulic circuits – installed in a damage-tolerant all-composite tail boom.
