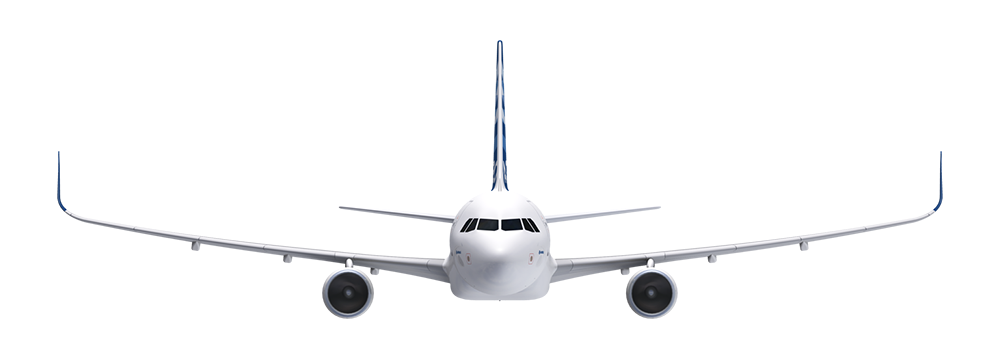

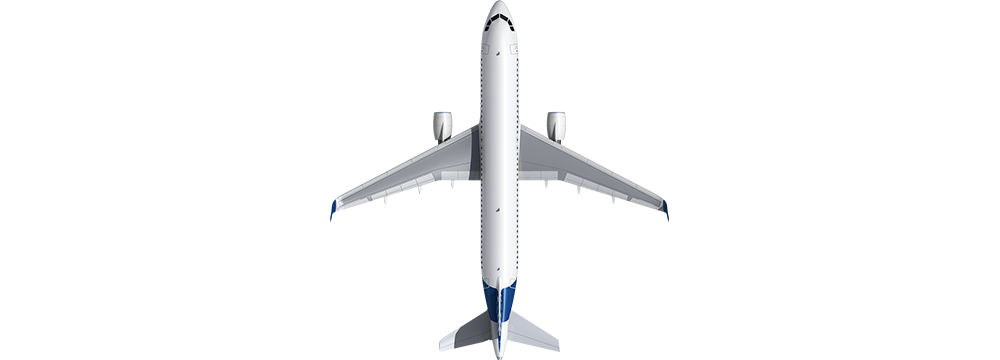

Dimensions
Overall length | 123 ft 3 in |
Cabin length | 90 ft 3 in |
Fuselage width | 13 ft 0 in |
Max cabin width | 12 ft 1 in |
Wing span (geometric) | 117 ft 5 in with Sharklets |
Height |
38 ft 7 in |
Track |
24 ft 11 in |
Wheelbase | 41 ft 5 in |
Capacity
Pax |
Max seating |
180 |
Typical seating 2-class | 140-170 | |

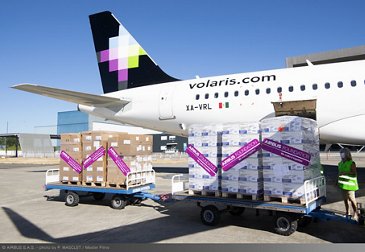

Cargo |
LD3 capacity underfloor |
7 LD3-45W |
Max pallet number underfloor |
7 | |
Water volume |
1,556 ft³ |
Performance

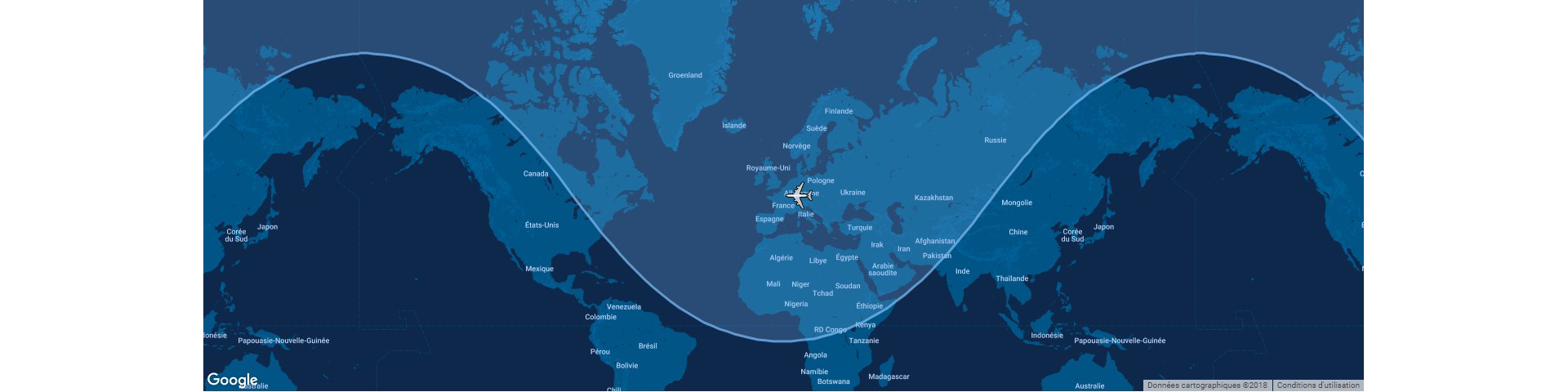

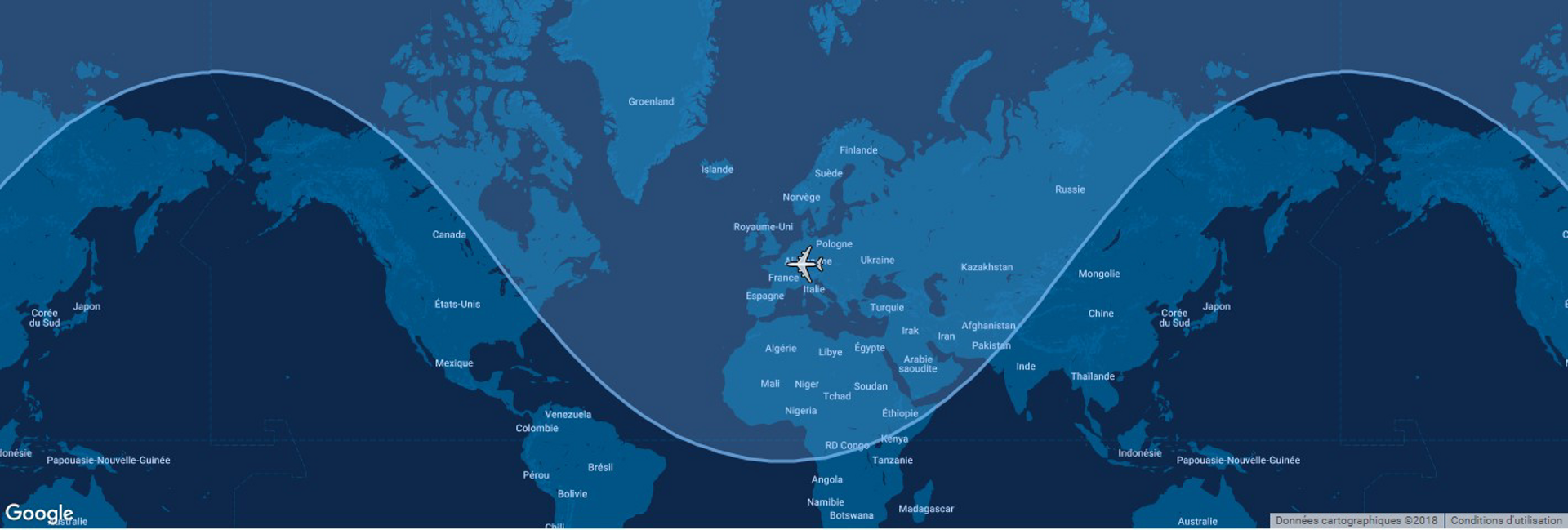

Range | 3 350 nm with Sharklets |
Mmo | M0.82 |
Max ramp weight |
172.80 tonnes |
Max take-off weight |
172.00 tonnes |
Max landing weight |
145.50 lb x 1000 |
Max zero fuel weight |
137.80 lb x 1000 |
Max fuel capacity |
7 190 USG |
