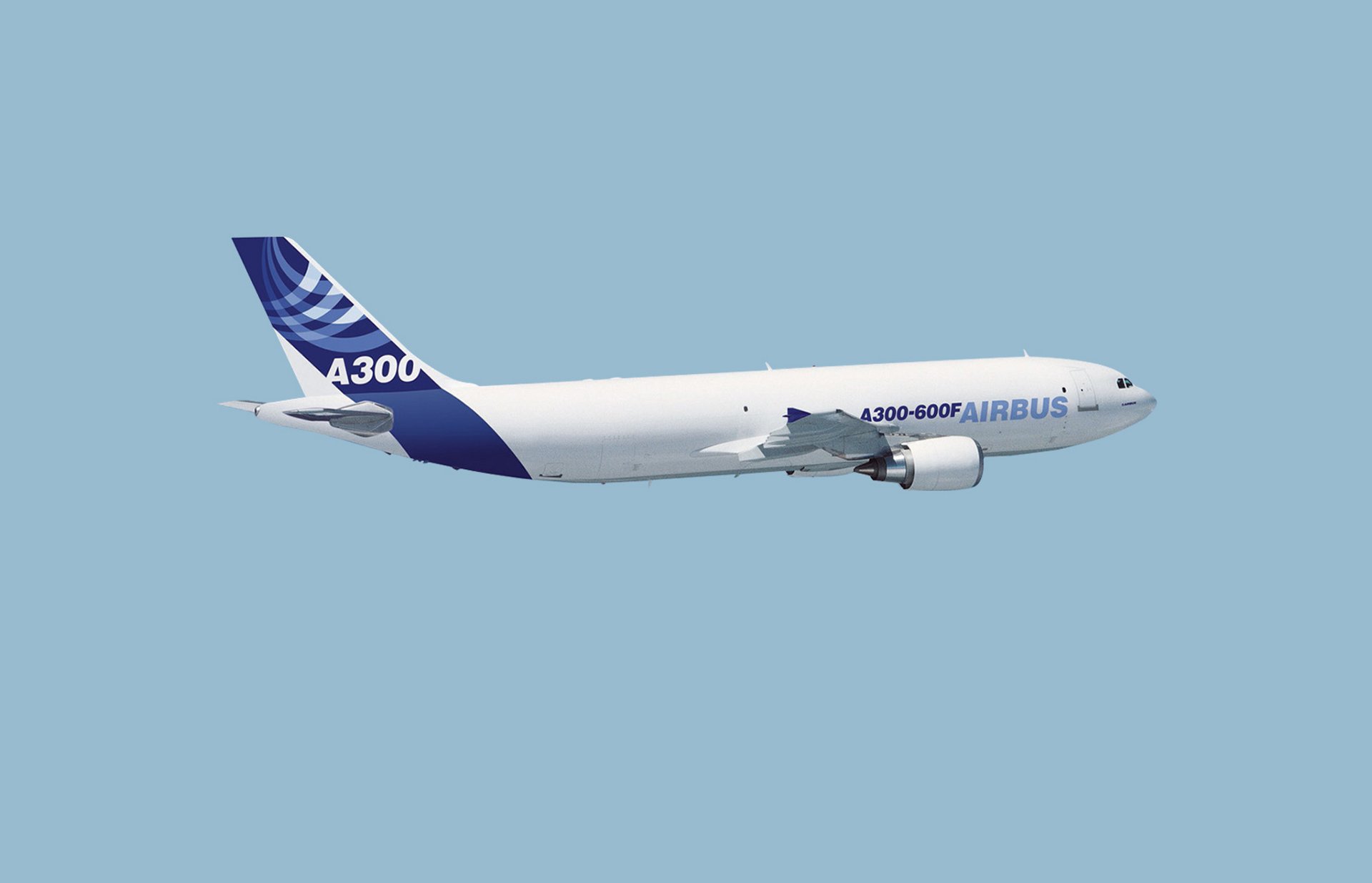

A300-600F

The A300-600 jetliner’s wide-body fuselage cross-section, high versatility and low operating costs make it an ideal regional freighter. In the A300-600F variant, this aircraft carries significant tonnage and volume on the main deck, as well as in the generous underfloor holds – accommodating the full range of existing cargo containers and pallets. With its range of more than 4,000 nautical miles, the A300-600 has the capability to fly all major regional routes of the world’s principal economic regions.

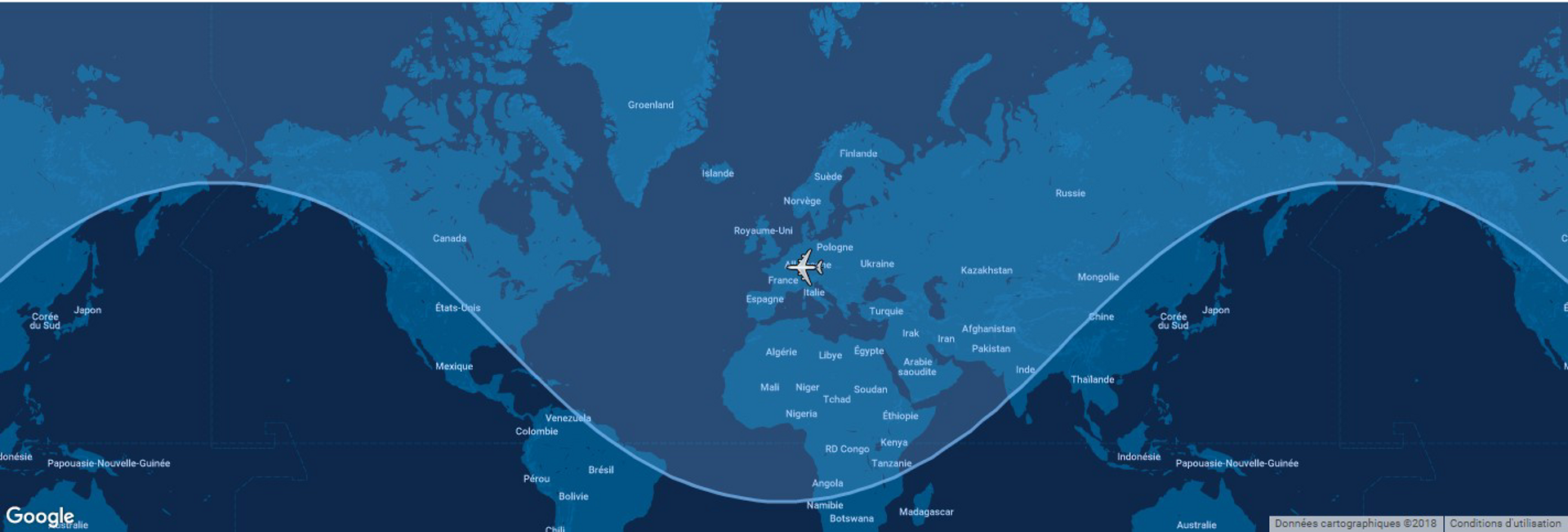

Range 7 500 km 4 050 nm
Overall length 54.10 m 177 ft 5 in

Wing span 44.84 m 147 ft 1 in

Height 16.5 m 54 ft 3 in

Dimensions

Overall length	54.10 m
Cabin length	40.70 m
Fuselage width	5.64 m
Max cabin width	5.28 m
Wing span (geometric)	44.84 m
Height	16.5 m
Track	9.60 m
Wheelbase	18.62 m

Capacity

Max payload	48.1 / 54.6 tonnes
Pallets or containers	Main deck: up to 21 pallets Lower deck: 7 pallets or 23 LD3

Performance

Range	7 500 km
Mmo	M0.82
Max ramp weight	171.2 - tonnes
Max take-off weight	170.5 - tonnes
Max landing weight	140 tonnes
Max zero fuel weight	130 tonnes
Max fuel capacity	68 150 litres

Dimensions

Overall length	177 ft 5 in
Cabin length	133 ft 6 in
Fuselage width	18 ft 0 in
Max cabin width	17 ft 4 in
Wing span (geometric)	147 ft 1 in
Height	54 ft 3 in
Track	31 ft 6 in
Wheelbase	61 ft 1 in

Capacity

Max payload	105.9 / 120.2 lb X1000
Pallets or containers	Main deck: up to 21 pallets Lower deck: 7 pallets or 23 LD3

Performance

Range	4 050 nm
Mmo	M0.82
Max ramp weight	377.9 - lb x 1000
Max take-off weight	375.9 - lb x 1000
Max landing weight	308.6 lb x 1000
Max zero fuel weight	286.6 lb x 1000
Max fuel capacity	18 000 USG

Tailor-made solution

The A300-600F can carry significant tonnage and volume on its main deck, as well as in the large underfloor holds – accommodating the full range of existing cargo containers and pallets. Derived from Airbus’ highly-reliable A300-600, this freighter provides ideal service standards for operators’ time-sensitive shipments.

The interliner

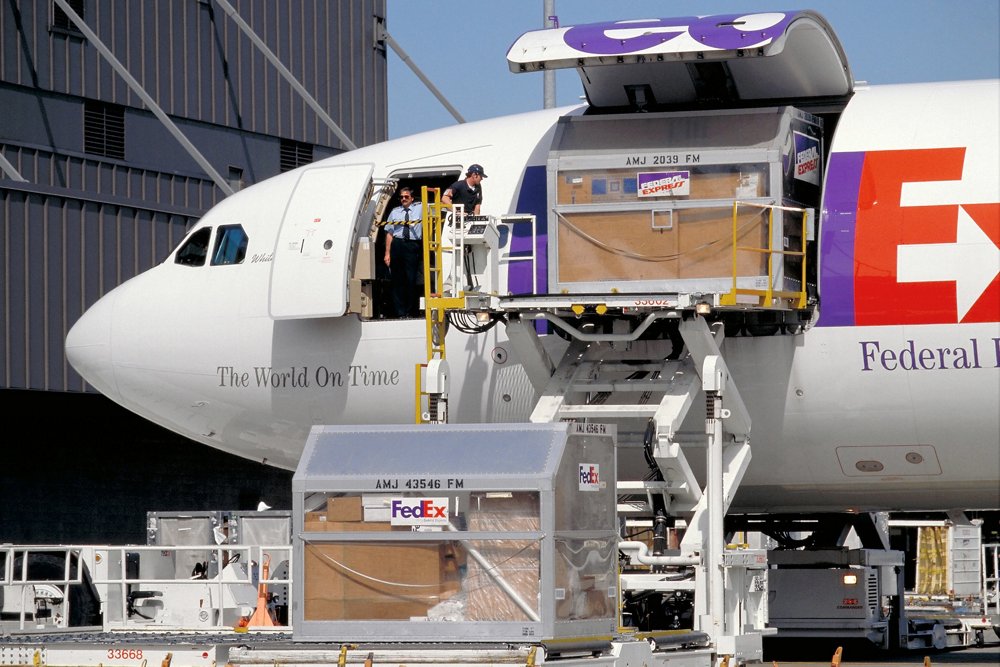

The A300-600F freighter version of Airbus’ cornerstone A300-600 is loaded with cargo in service with FedEx

The A300-600F has been an ideal freighter for routes in the world’s principal economic regions – with a large main cargo deck, as well as underfloor cargo holds that accept both LD3 containers (a total of 23) and pallets.

With its range of more than 4,000 nautical miles, the A300-600 has the capability to fly all major regional routes of the world’s principal economic regions. Since it is a derivative of the A300-600 passenger aircraft, this freighter brings the best service standards for time-sensitive shipments.

Loading access

Total cargo volume available on the A300-600F is 115.7 square metres. The aircraft is fitted with a 141 X 101-inch primary cargo door on the forward fuselage that facilitates the loading of industry-standard containers and pallets on the main deck, while large doors for the lower cargo holds facilitate the handling of freight in these below-deck zones.

On the main deck, the A300-600F’s capacity is 15 96 X 96 X125-inch pallets in single-row loading, or the side-by-side loading of up to 21 pallets sized at 88 X 96 X 125-inches. The underfloor cargo holds accept both LD3 containers (a total of 23) and pallets.

Setting the standards

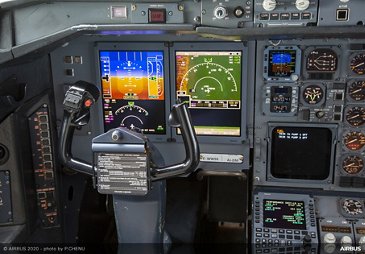

The A300-600F is part of the A300/A310 product line and incorporates Airbus technologies that have made these aircraft the standard-setters for performance, reliability and profitability. This includes fuel-saving aerodynamics such as wingtip devices; electrical signalling for slats, flaps and spoilers; the use of six identical electronic flight instruments on the flight deck; and automatic windshear protection.

During a long and successful production run, Airbus produced a total of 816 A300/A310s. Some 300 of these aircraft are expected to remain in service beyond 2025.
